Boat and Yacht SPEC SHEETS
SV "WINONA"
VESSEL: CUSTOM MURAKAMI SAILING CATAMARAN
DESIGNER: HISAO MURAKAMI
BUILDER: HISAO MURAKAMI
MODEL: HAWAIIAN STYLE SAILING PASSENGER CATAMARAN
YEAR BUILT: 1987 HONOLULU HAWAII
COI: 49 PASSENGERS + CAPT.+2 CREW NEAR COASTAL 52 TOTAL
COI: NEXT OUT OF WATER USCG HULL INSPECTION 10/2026
L.O.A. : 50'
BEAM: 22'
DRAFT: 6'
DISPLACEMENT: 22,000 LBS
GROSS TONS: 16 GRT
NET TONS: 14 NRT
CONSTRUCTION
HULL CONSTR: FIBERGLASS OVER MARINE PLYWOOD
DECK CONSTR: FIBERGLASS OVER MARINE PLYWOOD
CABIN CONSTR: FIBERGLASS OVER MARINE PLYWOOD
POWER: AUXILLARY SAIL
ENGINE: TWIN YANMARS
MODEL: 4JH4-TE / 4 CYLINDER
HP: 75 HP @
SHAFTS: 1 1/4" SS STRAIGHT SHAFTS
YEAR: BOTH ENGINES NEW IN 2013
HOURS: APPROX. 4,445 HRS.
BURN RATE: 1/2 GAL PER HR PER ENGINE @ 2,000-2,200 RPM@ 9-10 KTS
TOP SPEED: 9-10 KTS
TRANSMISSION: ZF 30 M
FUEL TANKS: 120 GALLONS IN 2 60 GAL. STAINLESS TANKS
STEERING: HYDRAULIC
DISPLAY: YANMAR ENGINE INSTRUMENT DISPLAYS
NOTE: NEW STBD TRANSMISSION 2023 / COMES W/SPARE TRANS
RIG TYPE: SLOOP / DOUBLE SPREADER
RIGGING: 1/2" UPPERS & 5/8" LOWERS STAINLESS STEEL WIRE
RIGGING YEAR: 2022 NEW
MAIN SAIL: ULLMAN SAIL US, FULL BATTEN, 2 REEFING POINTS, NEW STACKPACK 2023, SAIL AREA 503.2 SQ. FT., ONE SPARE
GENOA: HARKEN ROLLER FURLING / ULLMAN SAIL US, 110% GENOA, SAIL AREA 419.9 SQ. FT., ONE SPARE
WINCHES: 6 BARIENT SELF TAILING WINCHES / 1 ELECTRIC @ HELM
CABIN: LARGE OPEN AFT DECK LEADS INTO COVERED CABIN WITH A MODIFIED TIKI BAR, BENCH SEATING & 9 LAGRE FORWAD & SIDE WINDOWS W/AIR VENTS & 2 COMPANIONWAYS FOR ACCESS TO THE BOW AREA
WATER TANKS: 60 GALLONS TOTAL IN 2 30 GALLON POLYETHYLENE TANKS
BAMBOO TIKI BAR: SOLID ACACIA WOOD COUNTER FOR SERVING FOOD & DRINKS, TWO BUILT-IN INSULATED COOLERS, SINK, STORAGE & LOCKING LIQUOR CABINET, AC OUTLET & FAN
HELM STATION: 6-SPIKE SS WHEEL, CAPTAINS SUNSHADE BIMINI TOP, PEDESTAL SWIVIL CAPTIANS CHAIR, YANMAR ENGINE CONTROLS, GARMIN ECHOMAP GPS,VHF RADIOS & COMPASS
FOREDECK: TRAMPOLINES W/SNORKEL/SWIM LADDER CENTER MOUNTED, FRESH WATER SHOWER, STANCHIONS W/SAFETY LINES
HEADS: 2 ELECTRIC HEADS (STARBOARD & PORT) W/20 GALLON FRP HOLDING TANKS, MACERATOR PUMPS & VANITY W/FRESH WATER SINKS
ELECTRONICS: GARMIN 9" ECHOMAP UHD 93 SV TOUCHSCREEN CHARTPLOTTER / DEPTH RECORDER / TRANSDUCER, 1 VHF RADIO STANDARD HORIZON EXPLORER GX 1700B , RITCHIE COMPASS, PIONEER STEREO BLUETOOTH/CD PLAYER W/ 6 BOSE SPEAKERS
ELECTRICAL: BATTERIES: 4 INTERSTATE MARINE BATTERIES
3,000 WATT INVERTER W/AC PLUG AT TIKI BAR
PUMPS: FRESH WATER PUMPS, MACERATOR PUMPS & BILGE PUMPS
LIGHTS: SPREADER DECK, CABIN, RUNNING, ANCHOR, HEADS, ENGINE ROOMS & MANTA LIGHTS
MISC: TIKI BAR FAN
BILGE PUMPS: 8 RULE 2000 GPH BILGE PUMPS W/FOAT SWITCHES, 1 MANUAL WHALE GUSHER BILGE PUMP & 4 HIGH WATER BILGE ALARMS
GROUND TACKLE: MAIN ANCHOR 25 LB CQR MOUNTED ON TRANSOM, 100 LB DANFORTH EMERGENCY ANCHOR W/CHAIN & RODE STORED
SAFETY: 2 15-MAN LIFE FLOATS IN CUSTOM BRACKETS MOUNTED OFF TRANSOM W/STROBE LIGHTS & SUNBRELLA COVERS, 52 ADULT PFD'S & 20 CHILD PFD'S, THROW RING W/STROBE LIGHT, ACR EBIRB, FLARES, 5 FIRE EXTINGUISHERS, 2 HALON FIRE SUPPRESSION SYSTEMS, HORN, WHISTLE, FIRST AID KIT & EMERGENCY OXYGEN
SNORKEL/SAFETY: 24 SETS OF SNORKEL GEAR, SOFT TOP SURFBOARD, ASSORTED POOL NOODLE FLOATS & ADULT & KIDS INFLATABLE SNORKEL VESTS
LAST DRY DOCK: NOV. 2024
ADDITIONAL : SUNBRELLA COVERS FOR CABIN WINDOWS & COMPANIONWAYS, ADDITIONAL BOARDING LADDER IS MOUNTED ON THE STARBOARD SIDE MIDSHIP FOR BOARDING VESSEL FROM DINGY OR DOCK, SNORKEL GEAR
BONUS INFO: WINONA CURRENTLY HAS A LIQUOR LICENSE
FOR SALE: $599,000
PARAGON II
VESSEL: CONSER 47
DESIGNER: JOHN CONSER / CONSER CATARMARANS
BUILDER: JOHN CONSER / ERIC BARTOW
MODEL: PERFORAMNCE SAILING PASSENGER CATAMARAN
YEAR BUILT: 1996 COSTA MESA CALIFORNIA
COI: 49 PASSENGERS + 2 CREW NEAR COASTAL
COI: OUT OF WATER USCG HULL INSPECTION 11/2024
L.O.A. : 47'
BEAM: 24'
DRAFT: 3' 9" / 6' 6" BOARDS DOWN
DISPLACEMENT: 12,000 LBS
GROSS TONS: 9 GRT
NET TONS: 8 NRT
AUX SPEED: 10 KTS AUX
SAIL TOP SPEED: 31.4 KTS FULL SAIL
WATER TANKS: 40 GALLONS TOTAL, TWO 20 GALLON FRP TANKS
RIG TYPE: FRACTIONAL SLOOP
RIGGING: 1 X 19 STAINLESS STEEL WIRE
RIGGING YEAR: NEW JULY 2022
SAIL INVENTORY: 1 MAIN & 1 JIB
MAIN SAIL AREA: 675' SQ FT
JIB SAIL AREA: 375' SQ FT
SAIL MAKER: NEIL PRYDE
SAILS YEAR: NEW 2023
REEFING POINTS: 3 IN MAIN & 1 IN JIB
FULL BATTEN: YES BOTH MAIN & JIB
LAZY JACKS: YES
MAST: 58' CARBON FIBER ROTATING WING MAST
MAST AREA: 105' SQ FT
WINCHES: 6 HARKEN
DAGGER BOARDS: YES 3'6"
SPADE RUDDERS: EXPOXY GLASSED OVER FOAM CORE
STANCHIONS: NEW SS STANCHIONS 2022
CONSTRUCTION
HULL CONSTR: FIBERGLASS OVER FOAM CORE
DECK CONSTR: FOAM CORE FRP PANELS
CABIN CONSTR: FOAM CORE FRP PANELS
CABIN: FOOD COUNTER, GALLEY SINK, SEATING
POWER: AUXILLARY SAIL
ENGINE: SINGLE HONDA 90 HP OUTBOARD W LEG EXTENSIONS
FUEL: 12 GALLONS GAS IN 2 PORTABLE PLASTIC TANKS
YEAR: 2023
HOURS: 1,500 APPROX.
NOTE: TILTS UP INTO WING DECK, SERVICED EVERY 100HRS
HEAD: 8 GALLON HOLDING TANK W/ PUMP OUT
ELECTRICAL: TWO 12 VOLT BATTERIES, ONE HOUSE BATTERY & ONE STARTING BATTERY, OUTBOARD ALTERNATOR CHARGED
GROUND TACKLE: 35 LB DANFORTH, 50' CHAIN & 250' 3 STRAND NYLON RODE
MECHANICAL: 4 MANUAL WHALE GUSHER TITAN BILGE PUMPS, PUMPS FOR HEADS & SINKS
DECK: AFT FRESH SOLAR WATER SHOWER, TRAMPOLINES FORE AND AFT SAFETY RAILINGS, SNORKEL/SWIM LADDER ON FOREDECK
HELM STATION: LARGE SS WHEEL, ENGINE CONTROLS, GARMIN ECHOMAP GPS,VHF RADIO , COMPASS
SAFETY: 3 10-MAN LIFE FLOATS W/ STROBE LIGHTS (NEW), 50 PFD'S, 406 EBIRB, FLARES, FIRE EXTINGUISHERS AS REQUIRED, HORN, WHISTLE & FIRST AID KIT
LAST DRYDOCK: OCTOBER 2022
FOR SALE
$450,000
**SALE PENDING**
39' SAFE BOAT PASSENGER VESSEL
VESSEL: SAFE BOAT
BUILDER: SAFE Boats, Bremerton, WA
YEAR: 2003
MODEL: Passenger Vessel
COI: 22 passengers + 2 crew / 24 Total
LOA: 39' 3" BEAM:10" HULL DRAFT: 6'
DRY WEIGHT:
FUEL: 200 gal. total
ENGINES: Twin Yanmar 6LY2A-STP Diesel engines w/ Hamilton Jet Drives
CRUISING SPEED: 19 kts @ 2800 rpm
MAX SPEED: 26 kts @ 3000 rpm
ENGINES:
Port Engine: HP 440 Hrs: approx. 500 NEW rebuilt installed April 2023
Starboard Engine: HP 440 Hrs approx. 2581 Complete rebuild May 2019
Serial # H51965
*New oil cooler & diesel Injector pump recently installed
* Throttle stops at 3,000 RPM installed on both engines
Port Drive: 292 Hamilton Jet Drives March 2023 New Bucket & complete rebuild
Starboard Drive: 292 Hamilton Jet Drives March 2023 New Bucket & complete rebuild
Port Transmission: ZF 280-1
Port Transmission: ZF 280-1
Fuel Capacity: 200 gal. in one aluminum tank
Fuel Consumption: 10-13 gallon per hour (GPH) depending on speed, conditions & load
Controls: Yanmar
Steering: Hydraulic
HELM STATION: Hard Top with bimini extension & cushion bench seat
ELECTRONICS/NAVIGATION
GPS Chart Plotter: Garmin GPS map 1040xs
Depth Recorder/Sounder: Ray Marine
VHF Radio : Standard Horizon Eclipse
VHF Radio: Garmin VHF 200
Compass: Yes
ELECTRICAL: 12-volt DC system
Batteries: Four 12V AGM Optima Blue Top Marine Batteries
Charging System: Charging by engine alternators DC control panel
DECK/HULL: Two Freeman Deck Hatches
Lights: Navigation lights, Aft & Fore deck lights, Cabin lights
Anchor: Danforth 22lb
Anchor Rode: Chain: 20' Line: 200' Size: 1/2" nylon rode
Seating: Cushioned Bench seating fore & aft
Swim Dive Ladder: HD Custom Dive / Swim Ladder off aft swim platform
Bilge pumps:
21,500 gph w/float switches
One manual bilge pump
High Water Bilge Alarm
SAFETY:
22 adult and 7 child approved PFDs
2 throw rings - 1 with a strobe light
406 EPRIB current registration
Current flares as required
Fire extinguishers as required
Engine room fixed extinguisher Fire Boy system Air Horn
Optional:
First Aid Kit
Assorted tools
Misc. spares and parts
TRAILER: HD Boat Master Commercial Triple Axle Aluminum Trailer
Current registration, safety & ramp sticker
PRICE $198,500.00

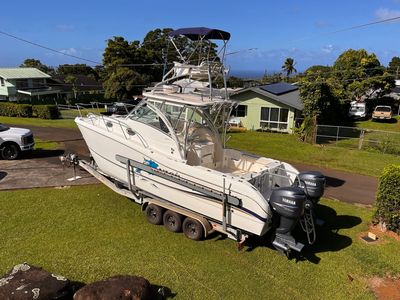

290 EC WORLD CAT
YEAR: 2009
MODEL: 290 WORLD CAT EXPRESS CRUISER W/REMOVABLE TOWER
LOA: 29'1"
BEAM:9' 6"
HULL DRAFT: 1'3"
DRY WEIGHT: 9,700 lb.
FUEL: 250 gal. total
ENGINES:
TWIN 250 HP YAMAHA OUTBOARDS
CRUISING SPEED: 25 kts @ 4200 rpm MAX SPEED: 40+ kts ® 4800 rpm
FRESH WATER: 35 gal.
HOLDING TANK: 15 gal.
ENGINES:
Year: 2008 250 HP Yamaha's
Hrs: approx. 1,609
Fuel Capacity: 250 gal. in two 125 gal polypropylene tanks
Fuel Consumption: 1 gallon per mile (GPM) average troll to planing both engines
Props: 3 Blade Stainless Salt Water Series II, Size: 15 1/4 X 19, with one additional spare set Controls: Yamaha Electronic Steering: Sea Star Hydraulic
Trim: Aluminum Permatrim -Meticulously Maintained, Serviced every 100 since new
HELM STATION:
Hard Top
Cushion bench seat for 2 people
Full Eisenglass enclosure
2 Bomar Hatches
Above mounted electronics box, lockable
ELECTRONICS/NAVIGATION:
GPS Chart Plotter: C120 Ray Marine
Depth Recorder/Sounder: C120 Ray Marine
Radar: C120 Ray Marine
Auto Pilot: Ray Marine with Remote Control
VHF Radio: Ray Marine
Stereo: Clarion with 4 speakers, Am/Fm Radio Compass: Yes
TOWER:
Removable for trailering &/or storage
Second heim station
Bench seat for 2 people
Bimini Top
5 additional rod holders
Price - $189,000
